Nutrient Solution System
DAHAMFARM FertiCoreKS Compliant
A smart solution that automatically supplies the nutrient solution essential to crop cultivation
This system automatically delivers nutrient solution to crops at set times and volumes, reducing water and nutrient waste while boosting work efficiency.
Click to enlarge the image.
Click to enlarge the image.
Click to enlarge the image.
※ Screens and products shown are customized configurations; actual appearance may differ from the image shown.
Key Features
-
Integrated Management of Raw Water, Stock Solution & Zone Irrigation
-
Compact Size
-
Integrated Environment
Control & Monitoring -
Stock Solution
Volume Monitoring -
Raw Water & Stock Solution Level Monitoring, Control & Alerts
-
Substrate Moisture
Monitoring Integration -
Drainage Monitoring
Integration -
Pump Current Monitoring
-
User Friendly UI
-
Remote + Emergency
Manual Control -
Data Visualization
-
DAHAMFARM Platform Integration
Specifications
| Supply Voltage | 380V 3-phase 4-wire 50/60Hz (configurable) |
|---|---|
| Size | 1,100(W) x 1,300(D) x 980(H) mm |
| Mixing Tank | 150L, 200L |
| Main Control Module | Industrial PLC |
| Touch Monitor | 10.1"/15" (TFT-LCD), Ethernet communication |
| EC Sensor | 0 - 10dS/m |
| Channels: 1 - 2 (selectable) | |
| pH Sensor | pH 0 - 14 |
| Channels: 1 - 2 (selectable) | |
| Flow Sensor | 80 - 1,980L/min (selectable) |
| Supply Pump | Stainless steel, 30㎥/h |
| Stock Solution Channels | 1 - 4 channels (multi-channel available) |
| Zone Valves | 1 - 8 (expandable) |
※ The specifications above are standard specifications and may differ from the actual product.

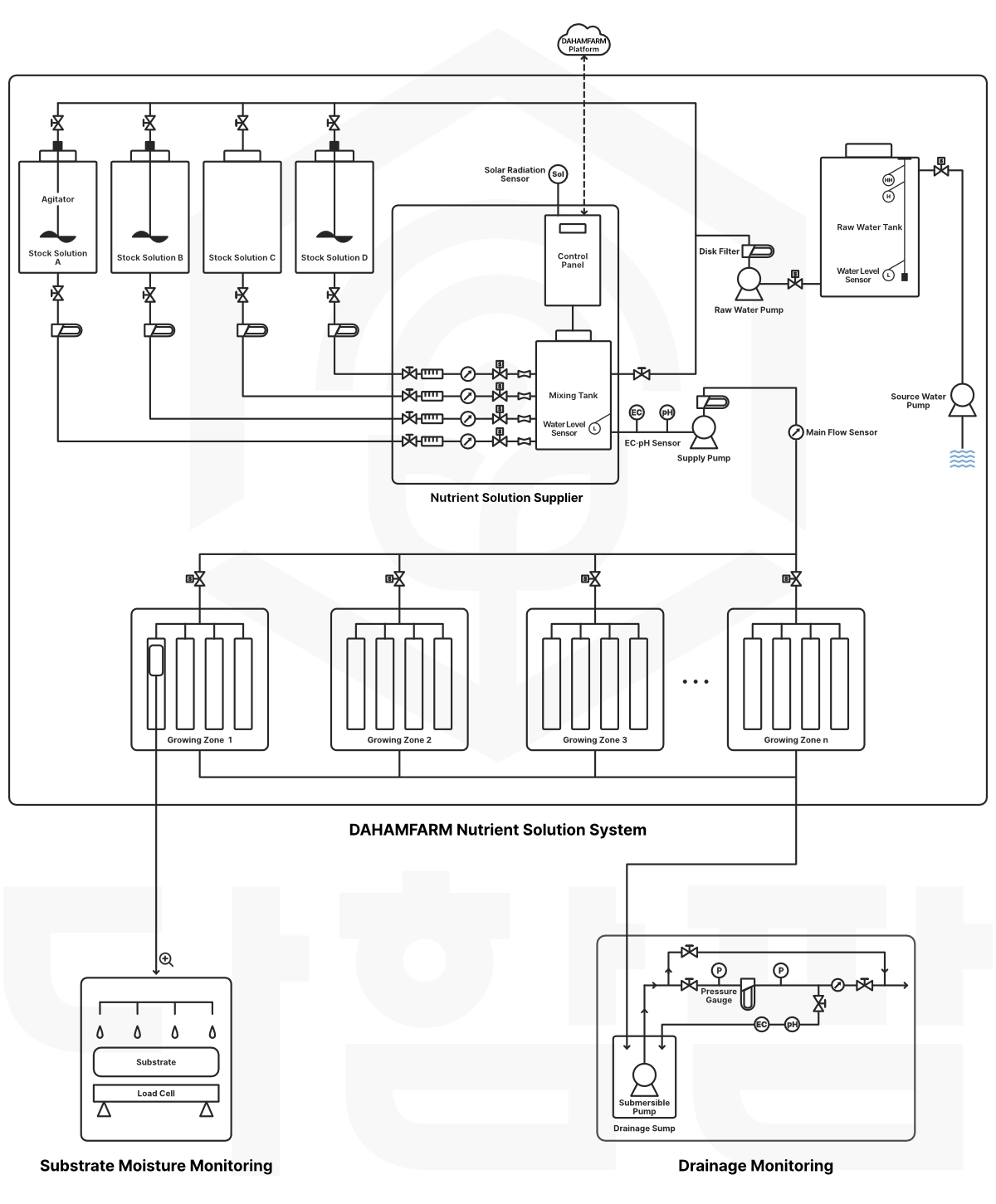

System Diagram
This diagram shows the nutrient solution unit and its optional additional components.
All components shown can be purchased individually and integrated into a complete system.
Additional Components
Raw Water Tank
3t, 5t, 10t
Raw Water Tank Level Sensor
HH, H, L
Raw Water Pump
Included in frame or installed separately
Stock Solution Tank
600L, 1t
Supply Pump
1.5 - 5.5kW
Stock Solution Agitator
Variable speed
Mixing Tank
150L, 200L
Automatic Valve
50A
Manual Valve
50A
Disc Filter
120 mesh
EC Sensor (Analog/Digital)
0 - 10dS/m
pH Sensor (Analog/Digital)
pH 0 - 14
Nutrient Solution Flow Sensor
10 - 200L/min
Stock Solution Flow Sensor
1 - 30L/min
| Raw Water Tank | 3t, 5t, 10t |
|---|---|
| Raw Water Tank Level Sensor | HH, H, L |
| Raw Water Pump | Included in frame or installed separately |
| Stock Solution Tank | 600L, 1t |
| Supply Pump | 1.5 - 5.5kW |
| Stock Solution Agitator | Variable speed |
| Mixing Tank | 150L, 200L |
| Automatic Valve | 50A |
| Manual Valve | 50A |
| Disc Filter | 120 mesh |
| EC Sensor (Analog/Digital) | 0 - 10dS/m | pH Sensor (Analog/Digital) | pH 0 - 14 |
| Nutrient Solution Flow Sensor | 10 - 200L/min |
| Stock Solution Flow Sensor | 1 - 30L/min |

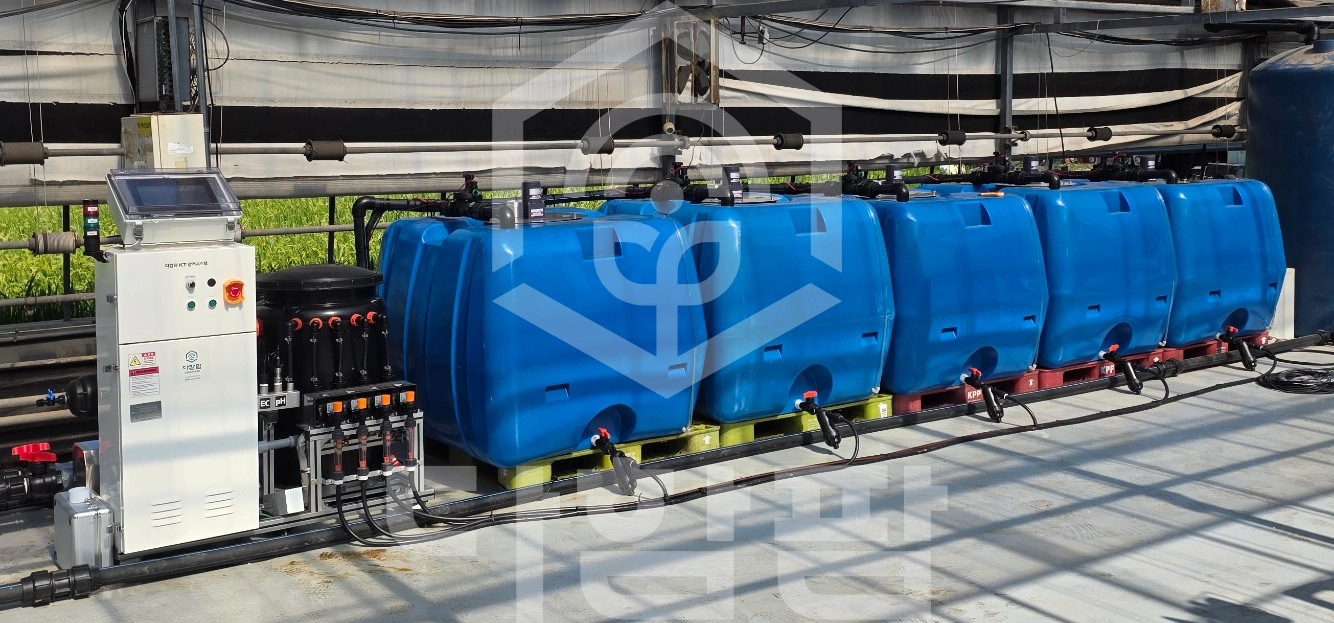

Case Studies
