Mushroom Cultivation Control System
DFM Series
A smart solution for integrated management across multiple growing rooms in a mushroom cultivation facility
This system automatically controls heating, cooling, humidification, and ventilation to maintain optimal growing conditions, with CCTV for interior monitoring.
Click to enlarge the image.
Click to enlarge the image.
Click to enlarge the image.
※ Screens and products shown are customized configurations; actual appearance may differ from the image shown.
Key Features
-
Integrated Growing Room Management
-
Heating, Cooling, Humidity, BFU, Fan, and LED Control
-
Multi-Room Camera
Monitoring -
Compact Size
-
Manual & Automatic
Operation -
Remote + Emergency
Manual Control -
Data Visualization
-
DAHAMFARM Platform Integration
Specifications
| Supply Voltage | AC 220V single-phase 50/60Hz |
|---|---|
| Size | 350(W) x 200(D) x 450(H) mm (varies by model) |
| Operation Mode | Manual (individual switches) / Automatic (10.1" touch monitor, TFT-LCD) |
| Main Control Module | Industrial PLC |
| Touch Monitor | 10.1" (TFT-LCD), Ethernet communication |
| Sensor Unit | Temperature range: -40 to +120℃ |
| Humidity range: 0 - 95%RH | |
| Communication: Modbus RTU RS485 | |
| Provides temperature, relative humidity, absolute humidity, dew point, and vapor pressure deficit data | |
| CCTV Camera | 2MP resolution, 4mm fixed-focus lens, PoE communication |
| Remote Box | 16 inputs, 16 outputs, relay contact output |
※ The specifications above are standard specifications and may differ from the actual product.

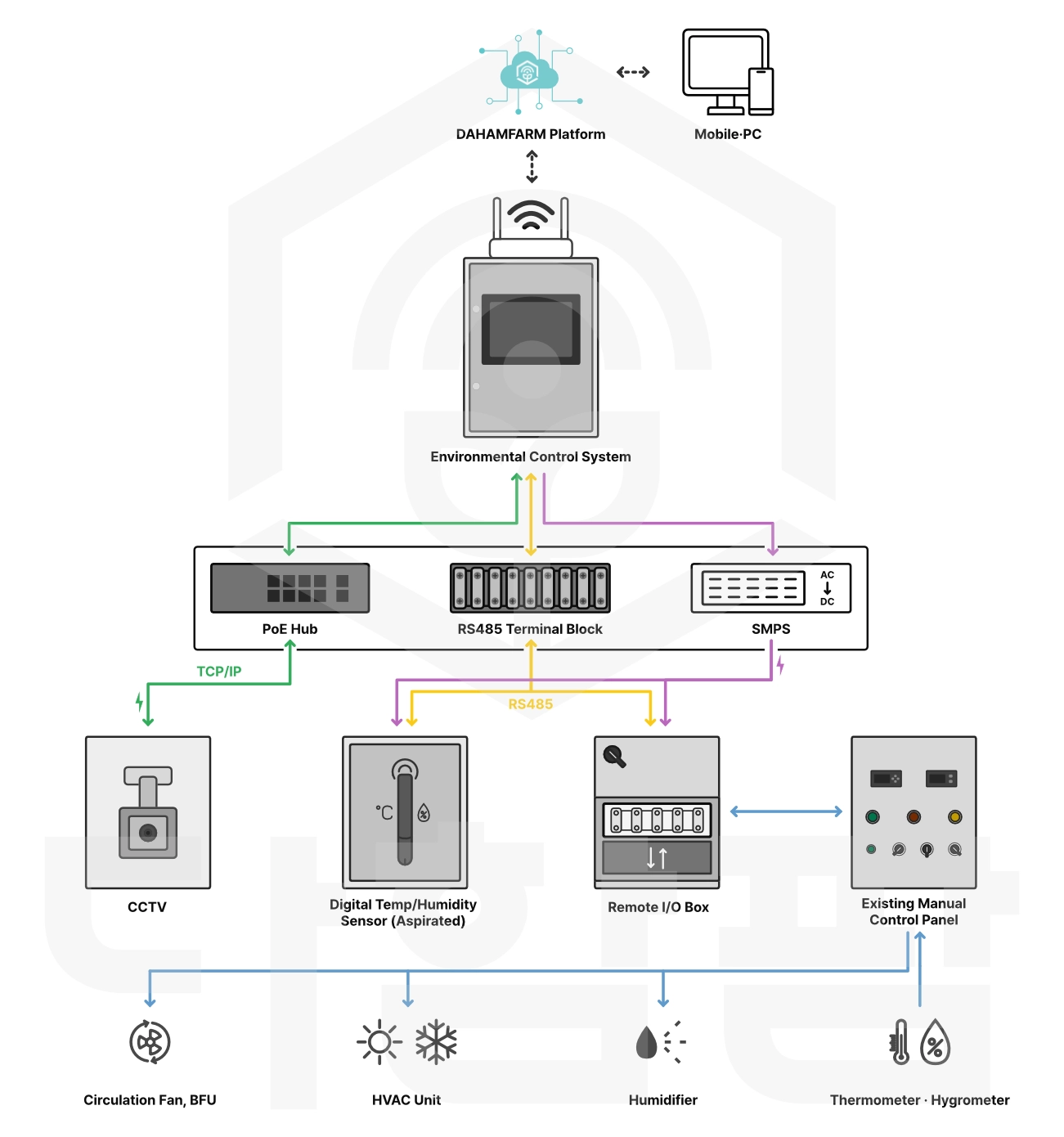

System Diagram
